Zookeeper - Season 2

Welcome Back!

This is a follow up blog post to Zookeeper - All you need to know. If you have not read that blog post, I would highly recommend to go check that out first.

Modes in Zookeeper

Zookeeper can run in two modes:

• Standalone: Only one server (can be used in development environment)
• Quorum Mode/Ensemble Mode: 2F + 1 servers, where F is the number of server failures one can tolerate

How to configure a Zookeeper Ensemble

• Each Server has a configuration file associated with itself
• Each configuration file lists all the servers that make up the ensemble
• Each server is identified by an id called sid or Server Identifier
• myid file: tells the server what its id is supposed to be
• myid file is kept inside the dataDir for each server
• clientPort is where clients connect. Mention this in the connectionString
• Information related to ensemble is provided in server.n entries
• Each server.n entry specifies the address and port numbers used by the servers
  • Example - server.5=127.0.0.1:2222:2223
  • This example indicates that server with myid=5 (S5) will use 2222 for communication and 2223 for leader election. (Shown in the logs below)

What happens when a Zookeeper server is started?

Standalone Mode

Keep calm and let clients connect

Ensemble Mode

1. When a server is started, it looks frantically for other servers mentioned in its config file

2. As long as its the only server up and running it will keep throwing java.net.ConnectException

3. As soon as another server joins, it proposes an election to take place

4. The following logs will be printed to the console:

   My election bind port: /127.0.0.1:2223
   LOOKING
   New election. My id =  5, proposed zxid=0xf00000002


5. Each server notifies other servers of its proposed leader using a ‘Notification Message’

Notification Message

Notifications are messages that let other peers know that a given peer has changed its vote, either because it has joined leader election or because it learned of another peer with higher zxid or same zxid and higher server id

Examples -

Notification: 1 (message format version), 1 (n.leader), 0x900000003 (n.zxid), 0x1 (n.round), LOOKING (n.state), 1 (n.sid), 0x9 (n.peerEpoch) LEADING (my state)

Notification: 1 (message format version), 3 (n.leader), 0xa00000001 (n.zxid), 0x1 (n.round), LOOKING (n.state), 1 (n.sid), 0xa (n.peerEpoch) LEADING (my state)

Notification: 1 (message format version), 5 (n.leader), 0xf00000002 (n.zxid), 0x1 (n.round), LOOKING (n.state), 5 (n.sid), 0xf (n.peerEpoch) LOOKING (my state)

Notification: 1 (message format version), 2 (n.leader), 0xd00000000 (n.zxid), 0x1 (n.round), FOLLOWING (n.state), 1 (n.sid), 0xf (n.peerEpoch) LOOKING (my state)

Reading the Notification Message / Notification Log

• n.sid is the server which sent the notification
• n.leader is the proposed leader; this can be the actual leader in case one exists
• n.state is the state of the sender (sid)
• n.zxid is the timestamp of the last change of the proposed leader

So, this is how you should read a notification message, taking 3rd and 4th example from above:

• Server 5 (S5) is currently in LOOKING state and proposes itself as the leader
• Server 1 (S1) is currently in FOLLOWING state and proposes Server 2 (S2) as the leader (maybe S2 is already the LEADER since S1 is in FOLLOWING state)

Types of Servers in Zookeeper

• Leader
• Follower
• Observer: Observers do not participate in an election. They are used for High Availability

Leader, Follower are also called Participants since they participate in an election

Follower, Observer are also called Learners

More about messages

LEADER sends following types of messages:

1. SNAP entire snapshot transfer
2. DIFF contains most recent missing transactions
3. INFORM is information for Observer server
4. PROPOSAL proposes state changes to Followers
5. COMMIT asks the Followers to commit the changes conveyed in PROPOSAL
6. HEARTBEAT

Let us understand these messages

Zookeeper in 14 steps

Since you have been so patient in understanding and reading about all these concepts, this is where you are going to reward yourself by making sense of it all.

1. A server connects in LOOKING state
2. Election takes place
3. LEADER is elected
4. FOLLOWER syncs with LEADER
   • Based on how much a FOLLOWER lags behind, the LEADER sends DIFF (most recent missing transactions) or a SNAP (entire snapshot transfer)
   • Send INFORM message to OBSERVER
5. Client connects to FOLLOWER/OBSERVER (also called LEARNER)
6. LERNER forwards session information of the client to the LEADER
7. LERNER responds to read requests locally
8. Client sends write request to the LERNER
9. LERNER forwards write requests to the LEADER
10. LEADER transforms the request into a transaction
11. LEADER sends a PROPOSEs theFOLLOWER about the transaction
12. FOLLOWER responds with ACK
13. If majority of ensemble replies with ACK, LEADER sends a COMMIT to all the FOLLOWER
14. LEADER sends INFORM message to OBSERVER

Caveat to point 12

Before acknowledging the PROPOSAL, the FOLLOWER needs to perform these checks:

• PROPOSAL is from the LEADER it is currently following
• ACK and COMMIT transactions in the same order as broadcasted by the LEADER

Miscellaneous points

• tick is the basic unit of measurement for time used by Zookeeper

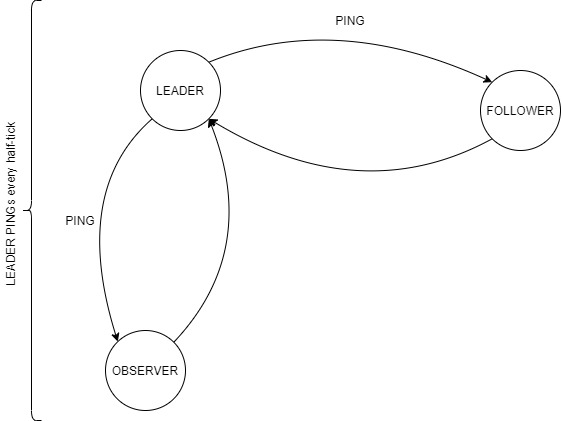

• LEADER PINGs every half-tick
• Availability depends on Quorum
• Observers do not take part in Quorum
• epoch number increases after each election
• Client can not connect to a server that has not seen an update that the client might have seen. i.e. zxid of client should be less than or equal to zxid of server.

In a single machine, if a process fails, other processes can detect the failure from OS. However, in a distributed system, the processes which are still running are responsible to detect failure of other processes

Directories to watch out for

A typical Zookeeper installation on Ubuntu has the following components.

• /usr/share/zookeeper/
• /etc/zookeeper
• /var/lib/zookeeper
• /etc/alternatives/zookeeper-conf

logs

tail -f  /var/log/zookeeper/zookeeper.log

start zookeeper service

sudo /usr/share/zookeeper/bin/zkServer.sh

What next?

I have done several experiments with Zookeeper. Experiments with different configurations, added weights to each vote and more scenarios. Sharing all experiments is not feasible here, but depending on the response to this Zookeeper series of two posts, I may write another follow-up blog in the future regarding one or two of my experiments. Till then, adios amigos!
